Everest Max PVC Window Systems

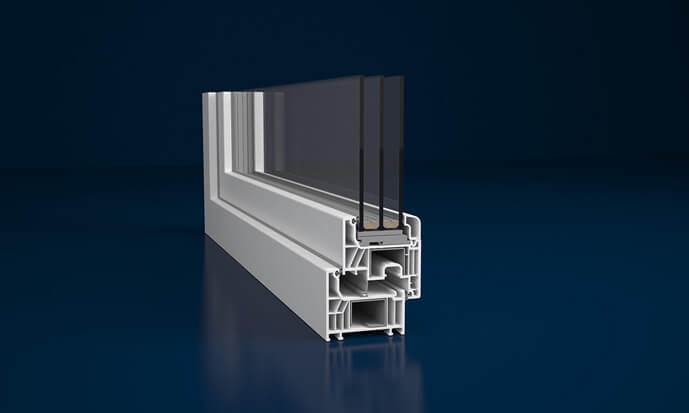

The Everest Max PVC Window System is designed with a 60 mm width, featuring 4 chambers and 2 gaskets. By incorporating TPE gaskets, the system gains the ability to be welded at the corners, ensuring strong sealing and superior performance in preventing leakage.

Profile Width
60 mm
Number of Chambers
4
Number of Seals
2 (with central seal)
Seal Type
TPE Gray / Black
Muntin
Single hooked - PCE sealed
Glass Thicknesses
4, 20, 24, 30, 36 mm
Standard
TS EN 12608-1 Class B
Thermal Conductivity Coefficient
Uf: 1.5 W/m2K

The Everest Max PVC Window System features a wide range of products, including 90 mm and 150 mm window profiles, mullions, interconnecting profiles, angled corner joints, 90° and 135° corner joints, drip edges, aluminum thresholds, various closure profiles, and window sill installation profiles.

The system offers several options such as Everest Max frame, frame with reveals, and L54 image frame, providing solutions for various details.

The height of the door sashes and outward opening door sashes within the system has been optimized and reduced, increasing the glass surface, and thus expanding the viewing area.

The Everest Max PVC Window System is designed with a special sloped design that accelerates water drainage. The system enables the production of special window types such as folding doors, parallel sliding windows, and outward opening windows. For safety, the recommended secure espagnolette locking system can be implemented within the system. These systems are fully compatible with all other systems (such as flyscreens, shutters, and roller blinds).
